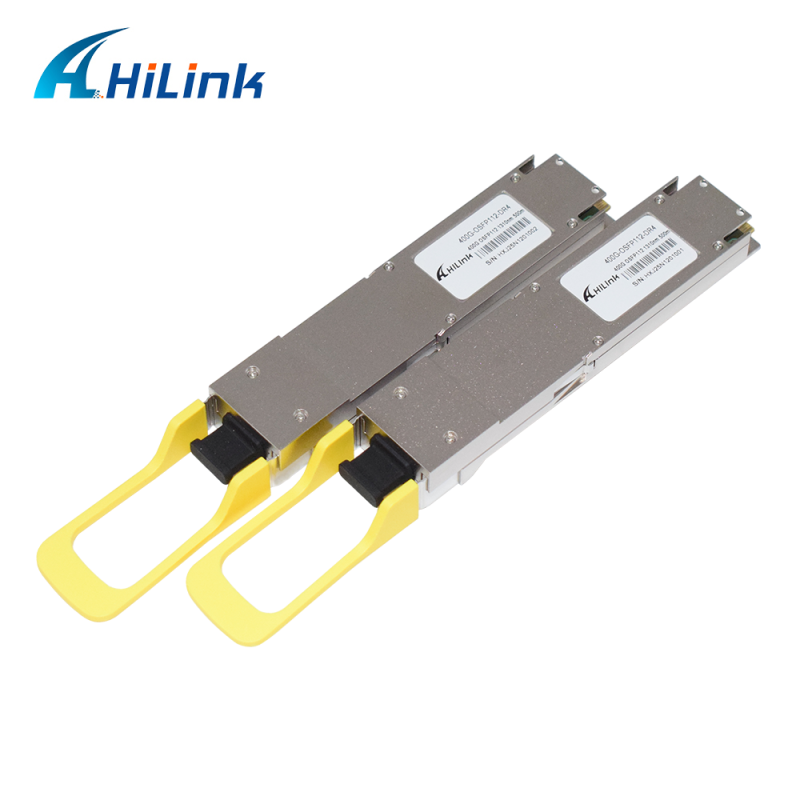

Hilink OSFP-400G-DR4 1310nm 500m SMF MPO-12 Optical Transceiver RoHS Compliant
OSFP-400G-DR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 500m. OSFP-400G-DR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes 1310nm each running at 106.25Gbps. They are compliant with the OSFP Module Specification and only use four electrical channels. OSFP-400G-DR4 are compliant with RoHS.
Feature
Compliant with IEEE Std 802.3bs on 400Gb/s Optical interfaces
Compliant with IEEE Std 802.3ck on 400Gb/s Electrical interfaces
Compliant with OSFP Module Specification
Compliant with CMIS5.0 Management interface specifications
MPO-12 receptacle
1310nm EML laser
4*53.125GBd PAM4 electrical interface
Transmission distance up to 500m SMF
Single +3.3V power supply
Commercial operating temperature: 0°C to +70°C
RoHS Compliant
Applications
400G BASE-DR4 Ethernet
Data Center
Company information
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use second-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:What devices can your products compatible with?
A:Our products are compatible with Mainstream switches.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
